A class that represents a sound object in a virtual acoustic context. More...

#include <omSoundObject.h>

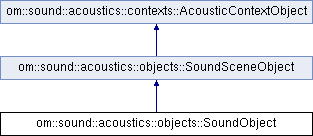

Inheritance diagram for om::sound::acoustics::objects::SoundObject:

Public Member Functions
	SoundObject ()
	Create a default sound object positioned at the origin with no shapes. More...

const Vector3f &	getPosition () const
	Return the position of this object. More...

void	setPosition (const Vector3f &newPosition)
	Set the position of this object. More...

const Matrix3f &	getOrientation () const
	Return the orientation of this object. More...

void	setOrientation (const Matrix3f &newOrientation)
	Set the orientation of this object. More...

const Vector3f &	getScale () const
	Return the scale of the object. More...

void	setScale (Float newScale)
	Set the scale of the object uniformly for all dimensions. More...

void	setScale (const Vector3f &newScale)
	Set the scale of the object. More...

const Transform3f &	getTransform () const
	Return the transformation for this object between its local and parent coordinate frame. More...

void	setTransform (const Transform3f &newTransform)
	Set the transformation for this object between its local and parent coordinate frame. More...

const Vector3f &	getVelocity () const
	Return the world-space linear velocity of this object in meters per second. More...

void	setVelocity (const Vector3f &newVelocity)
	Set the world-space linear velocity of this object in meters per second. More...

const Vector3f &	getAngularVelocity () const
	Return the world-space angular velocity of this object in radians per second. More...

void	setAngularVelocity (const Vector3f &newAngularVelocity)
	Set the world-space angular velocity of this object in radians per second. More...

Size	getShapeCount () const
	Return the number of shapes that this object has. More...

SoundShape *	getShape (Index shapeIndex) const
	Return a pointer to the shape for this object at the specified index. More...

Bool	addShape (SoundShape *newShape)
	Set the shape for this object at the specified index. More...

Bool	setShape (Index shapeIndex, SoundShape *newShape)
	Set the shape for this object at the specified index. More...

Bool	removeShape (Index shapeIndex)
	Remove the shape from this object at the specified index. More...

Bool	removeShape (const SoundShape *shape)
	Remove the specified shape from this object. More...

void	clearShapes ()
	Remove all shapes from this object. More...

SoundObjectFlags &	getFlags ()
	Return a reference to an object which contains boolean parameters of the sound object. More...

const SoundObjectFlags &	getFlags () const
	Return an object which contains boolean parameters of the sound object. More...

void	setFlags (const SoundObjectFlags &newFlags)
	Set an object which contains boolean parameters of the sound object. More...

Bool	flagIsSet (SoundObjectFlags::Flag flag) const
	Return whether or not the specified boolan flag is set for this sound object. More...

void	setFlag (SoundObjectFlags::Flag flag, Bool newIsSet=true)
	Set whether or not the specified boolan flag is set for this sound object. More...

Bool	getIsEnabled () const
	Return whether or not this object is enabled for sound propagation and rendering. More...

void	setIsEnabled (Bool newIsEnabled)
	Set whether or not this object should be enabled for sound propagation and rendering. More...

virtual Bool	setContext (AcousticContext *newContext)
	Set a pointer to the acoustics context this context object should use to do simulation. More...

SoundObjectID	getID () const
	Return the ID of this sound object within its current acoustic context. More...

virtual Bool	addSceneObjects (SoundSceneID sceneID)
	Add internal context objects to the scene with the specified ID. More...

virtual Bool	removeSceneObjects (SoundSceneID sceneID)
	Remove internal context objects from the scene with the specified ID. More...

Public Member Functions inherited from om::sound::acoustics::contexts::AcousticContextObject
virtual	~AcousticContextObject ()
	Destory this acoustics context object. More...

AcousticContext *	getContext () const
	Return a pointer to the acoustics context this context object is using to do simulation. More...

Bool	clearContext ()
	Clear the previous context from this object. More...

Static Public Attributes
static const ResourceType	RESOURCE_TYPE
	The resource type for a sound object. More...

Additional Inherited Members
Protected Member Functions inherited from om::sound::acoustics::contexts::AcousticContextObject
	AcousticContextObject ()
	Create a new acoustics context object that doesn't have an associated acoustics context. More...

	AcousticContextObject (AcousticContext *newContext)
	Create a new acoustics context object that uses the specified context for simulation. More...

Protected Attributes inherited from om::sound::acoustics::contexts::AcousticContextObject
AcousticContext *	context
	A pointer to the acoustics context this object is using. More...

Detailed Description

A class that represents a sound object in a virtual acoustic context.

Constructor & Destructor Documentation

om::sound::acoustics::objects::SoundObject::SoundObject ( )

Create a default sound object positioned at the origin with no shapes.

Member Function Documentation

const Vector3f& om::sound::acoustics::objects::SoundObject::getPosition ( ) const

inline

Return the position of this object.

This position is specifid relative to the origin of the enclosing coordinate space.

void om::sound::acoustics::objects::SoundObject::setPosition ( const Vector3f & newPosition )

inline

Set the position of this object.

This position is specifid relative to the origin of the enclosing coordinate space.

const Matrix3f& om::sound::acoustics::objects::SoundObject::getOrientation ( ) const

inline

Return the orientation of this object.

void om::sound::acoustics::objects::SoundObject::setOrientation ( const Matrix3f & newOrientation )

Set the orientation of this object.

const Vector3f& om::sound::acoustics::objects::SoundObject::getScale ( ) const

inline

Return the scale of the object.

void om::sound::acoustics::objects::SoundObject::setScale ( Float newScale )

inline

Set the scale of the object uniformly for all dimensions.

void om::sound::acoustics::objects::SoundObject::setScale ( const Vector3f & newScale )

inline

Set the scale of the object.

const Transform3f& om::sound::acoustics::objects::SoundObject::getTransform ( ) const

inline

Return the transformation for this object between its local and parent coordinate frame.

void om::sound::acoustics::objects::SoundObject::setTransform ( const Transform3f & newTransform )

Set the transformation for this object between its local and parent coordinate frame.

This method ensures that the object's new orientation matrix is orthonormal.

const Vector3f& om::sound::acoustics::objects::SoundObject::getVelocity ( ) const

inline

Return the world-space linear velocity of this object in meters per second.

void om::sound::acoustics::objects::SoundObject::setVelocity ( const Vector3f & newVelocity )

inline

Set the world-space linear velocity of this object in meters per second.

const Vector3f& om::sound::acoustics::objects::SoundObject::getAngularVelocity ( ) const

inline

Return the world-space angular velocity of this object in radians per second.

void om::sound::acoustics::objects::SoundObject::setAngularVelocity ( const Vector3f & newAngularVelocity )

inline

Set the world-space angular velocity of this object in radians per second.

Size om::sound::acoustics::objects::SoundObject::getShapeCount ( ) const

inline

Return the number of shapes that this object has.

SoundShape* om::sound::acoustics::objects::SoundObject::getShape ( Index shapeIndex ) const

inline

Return a pointer to the shape for this object at the specified index.

Bool om::sound::acoustics::objects::SoundObject::addShape ( SoundShape * newShape )

Set the shape for this object at the specified index.

The method returns whether or not the operation was successful. The method fails if the new shape pointer is NULL.

Bool om::sound::acoustics::objects::SoundObject::setShape	(	Index	shapeIndex,
		SoundShape *	newShape
	)

inline

Set the shape for this object at the specified index.

The method returns whether or not the operation was successful. The method fails if the new shape pointer is NULL.

Bool om::sound::acoustics::objects::SoundObject::removeShape ( Index shapeIndex )

Remove the shape from this object at the specified index.

The method returns whether or not the operation was successful. The method fails if the specified index is out of bounds.

Bool om::sound::acoustics::objects::SoundObject::removeShape ( const SoundShape * shape )

Remove the specified shape from this object.

Returns: whether or not the shape was successfully found and removed.

void om::sound::acoustics::objects::SoundObject::clearShapes ( )

Remove all shapes from this object.

SoundObjectFlags& om::sound::acoustics::objects::SoundObject::getFlags ( )

inline

Return a reference to an object which contains boolean parameters of the sound object.

const SoundObjectFlags& om::sound::acoustics::objects::SoundObject::getFlags ( ) const

inline

Return an object which contains boolean parameters of the sound object.

void om::sound::acoustics::objects::SoundObject::setFlags ( const SoundObjectFlags & newFlags )

inline

Set an object which contains boolean parameters of the sound object.

Bool om::sound::acoustics::objects::SoundObject::flagIsSet ( SoundObjectFlags::Flag flag ) const

inline

Return whether or not the specified boolan flag is set for this sound object.

void om::sound::acoustics::objects::SoundObject::setFlag	(	SoundObjectFlags::Flag	flag,
		Bool	newIsSet = `true`
	)

inline

Set whether or not the specified boolan flag is set for this sound object.

Bool om::sound::acoustics::objects::SoundObject::getIsEnabled ( ) const

inline

Return whether or not this object is enabled for sound propagation and rendering.

Objects are enabled by default but can be disabled if no audio is being played for a object or if a object is not needed. This can increase the performance in scenes with large numbers of object that might not all be active at any given time.

void om::sound::acoustics::objects::SoundObject::setIsEnabled ( Bool newIsEnabled )

inline

Set whether or not this object should be enabled for sound propagation and rendering.

Objects are enabled by default but can be disabled if no audio is being played for a object or if a object is not needed. This can increase the performance in scenes with large numbers of object that might not all be active at any given time.

virtual Bool om::sound::acoustics::objects::SoundObject::setContext ( AcousticContext * newContext )

virtual

Set a pointer to the acoustics context this context object should use to do simulation.

Reimplemented from om::sound::acoustics::contexts::AcousticContextObject.

SoundObjectID om::sound::acoustics::objects::SoundObject::getID ( ) const

inline

Return the ID of this sound object within its current acoustic context.

virtual Bool om::sound::acoustics::objects::SoundObject::addSceneObjects ( SoundSceneID sceneID )

virtual

Add internal context objects to the scene with the specified ID.

Reimplemented from om::sound::acoustics::objects::SoundSceneObject.

virtual Bool om::sound::acoustics::objects::SoundObject::removeSceneObjects ( SoundSceneID sceneID )
