A class that represents an abstract renderable object. More...

#include <omGraphicsShape.h>

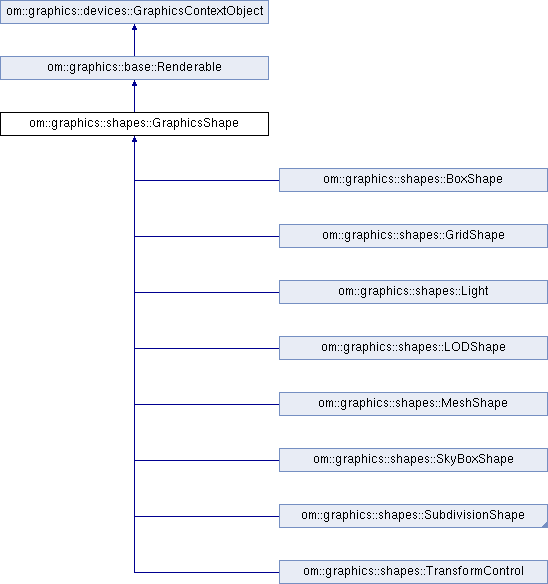

Inheritance diagram for om::graphics::shapes::GraphicsShape:

Public Member Functions
ShapeTypeID	getShapeTypeID () const
	Return an integer identifying the sub type of this shape. More...

const ShapeType &	getShapeType () const
	Return a reference to an object representing the type of this Shape. More...

Sphere3	getBoundingSphere () const
	Return a bounding sphere for this transformable in its parent coordinate space. More...

const AABB3 &	getBoundingBox () const
	Return an axis-aligned bounding box that encompases this entire transformable in its parent coordinate space. More...

virtual void	updateBoundingBox ()
	Update the shape's bounding box based on its current geometric representation. More...

virtual void	intersectRay (GraphicsRay &ray) const
	Trace a ray against this shape and compute the closest intersection. More...

virtual void	testRay (GraphicsRay &ray) const
	Trace a ray against this shape and determine if any intersection exist along the ray. More...

Public Member Functions inherited from om::graphics::base::Renderable
	Renderable ()
	Create a new renderable object with the default renderable flags. More...

	Renderable (const RenderableFlags &newFlags)
	Create a new renderable object with the specified renderable flags. More...

RenderableFlags &	getFlags ()
	Return a reference to an object that contains boolean parameters of the renderable. More...

const RenderableFlags &	getFlags () const
	Return an object that contains boolean parameters of the renderable. More...

void	setFlags (const RenderableFlags &newFlags)
	Set an object that contains boolean parameters of the renderable. More...

Bool	flagIsSet (RenderableFlags::Flag flag) const
	Return whether or not the specified boolan flag is set for this renderable. More...

Bool	flagsAreSet (const RenderableFlags &otherFlags) const
	Return whether or not all of the specified boolan flags are set for this renderable. More...

void	setFlag (RenderableFlags::Flag flag, Bool newIsSet=true)
	Set whether or not the specified boolan flag is set for this renderable. More...

Bool	getIsVisible () const
	Get whether or not the renderable and its children are visible in the scene. More...

void	setIsVisible (Bool newIsVisible)
	Set whether or not the renderable and its children are visible in the scene. More...

Bool	getShadowsEnabled () const
	Return whether or not this renderable can cast shadows. More...

void	setShadowsEnabled (Bool newCanCastShadows)
	Set whether or not this renderable can cast shadows. More...

virtual void	getRenderables (const shapes::RenderRequest &request, const Transform3 &worldTransform, shapes::RenderQueue &outputQueue) const =0
	Process the renderable and add all child renderable objects to the output render queue. More...

Public Member Functions inherited from om::graphics::devices::GraphicsContextObject
virtual	~GraphicsContextObject ()
	Destory this graphics context object. More...

GraphicsContext *	getContext () const
	Return a pointer to the graphics context this context object is using to do rendering. More...

virtual void	setContext (GraphicsContext *newContext)
	Set a pointer to the graphics context this context object should use to do rendering. More...

void	clearContext ()
	Clear the previous context from this object. More...

void	upload ()
	Upload this resource's CPU representation to the GPU device. More...

virtual void	upload (UploadRequest &request)
	Upload this resource's CPU representation to the GPU device. More...

void	download ()
	Upload this resource's CPU representation to the GPU device. More...

virtual void	download (DownloadRequest &request)
	Download the resource's GPU representation to CPU memory. More...

virtual Bool	isUploaded () const
	Return whether or not this graphics resource has been successfully created and uploaded to the device. More...

virtual Bool	isDownloaded () const
	Return whether or not this graphics resource has a copy of its data stored in CPU-side memory. More...

virtual Bool	isValid () const
	Return whether or not the state of this graphics resource is valid (either on CPU or GPU) and able to be used for rendering. More...

Static Public Attributes
static const ResourceType	RESOURCE_TYPE
	The resource type for a graphics shape. More...

Protected Member Functions
	GraphicsShape (const ShapeType *newType)
	Create a new shape with the specified type. More...

void	setBoundingBox (const AABB3 &newBoundingBox)
	Set the local axis-aligned bounding box for this shape. More...

Protected Member Functions inherited from om::graphics::devices::GraphicsContextObject
	GraphicsContextObject ()
	Create a new graphics context object that doesn't have an associated graphics context. More...

	GraphicsContextObject (GraphicsContext *newContext)
	Create a new graphics context object that uses the specified context for rendering. More...

Additional Inherited Members
Protected Attributes inherited from om::graphics::base::Renderable
RenderableFlags	flags
	An object containing boolean configuration flags for this renderable. More...

Protected Attributes inherited from om::graphics::devices::GraphicsContextObject
GraphicsContext *	context
	A pointer to the graphics context this object is using. More...

Detailed Description

A class that represents an abstract renderable object.

A shape object contains whatever information is necessary to render it to the screen. Every shape has a transformation which orients it relative to its parent coordinate frame.

Constructor & Destructor Documentation

om::graphics::shapes::GraphicsShape::GraphicsShape ( const ShapeType * newType )

inlineprotected

Create a new shape with the specified type.

Member Function Documentation

ShapeTypeID om::graphics::shapes::GraphicsShape::getShapeTypeID ( ) const

inline

Return an integer identifying the sub type of this shape.

const ShapeType& om::graphics::shapes::GraphicsShape::getShapeType ( ) const

inline

Return a reference to an object representing the type of this Shape.

Sphere3 om::graphics::shapes::GraphicsShape::getBoundingSphere ( ) const

inline

Return a bounding sphere for this transformable in its parent coordinate space.

const AABB3& om::graphics::shapes::GraphicsShape::getBoundingBox ( ) const

inline

Return an axis-aligned bounding box that encompases this entire transformable in its parent coordinate space.

virtual void om::graphics::shapes::GraphicsShape::updateBoundingBox ( )

virtual

Update the shape's bounding box based on its current geometric representation.

Reimplemented in om::graphics::shapes::BoxShape, om::graphics::shapes::CapsuleShape, om::graphics::shapes::CylinderShape, om::graphics::shapes::SkyBoxShape, om::graphics::shapes::GridShape, om::graphics::shapes::LODShape, om::graphics::shapes::TorusShape, om::graphics::shapes::MeshShape, om::graphics::shapes::SphereShape, om::graphics::shapes::TransformControl, and om::graphics::shapes::SphericalFunctionShape.

virtual void om::graphics::shapes::GraphicsShape::intersectRay ( GraphicsRay & ray ) const

virtual

Trace a ray against this shape and compute the closest intersection.

Reimplemented in om::graphics::shapes::BoxShape, om::graphics::shapes::CapsuleShape, om::graphics::shapes::CylinderShape, om::graphics::shapes::LODShape, om::graphics::shapes::MeshShape, om::graphics::shapes::TransformControl, om::graphics::shapes::SphereShape, and om::graphics::shapes::SubdivisionShape.

virtual void om::graphics::shapes::GraphicsShape::testRay ( GraphicsRay & ray ) const

virtual

Trace a ray against this shape and determine if any intersection exist along the ray.

Reimplemented in om::graphics::shapes::BoxShape, om::graphics::shapes::CapsuleShape, om::graphics::shapes::CylinderShape, om::graphics::shapes::LODShape, om::graphics::shapes::MeshShape, om::graphics::shapes::TransformControl, om::graphics::shapes::SphereShape, and om::graphics::shapes::SubdivisionShape.

void om::graphics::shapes::GraphicsShape::setBoundingBox ( const AABB3 & newBoundingBox )

inlineprotected

Set the local axis-aligned bounding box for this shape.

Shape subclasses should call this method to set the bounding box of their geometry in their local coordinate frames.

Member Data Documentation

const ResourceType om::graphics::shapes::GraphicsShape::RESOURCE_TYPE

static

The resource type for a graphics shape.

The documentation for this class was generated from the following file:

omGraphicsShape.h
